Name: Arducam 5MP Wide Angle USB Camera for Computer, 1/4" CMOS OV5648 Mini UVC USB2.0 Video Webcam with Microphone, with 3.3ft/1m Cable - Cloud 504 Voice
Brand: Arducam
Price: 31.99 USD
Availability: InStock

Arducam 5MP Wide Angle USB Camera for Computer, 1/4″ CMOS OV5648 Mini UVC USB2.0 Video Webcam with Microphone, with 3.3ft/1m Cable

Product description

Arducam UVC Camera

Arducam UB0233 is a new member of Arducam’s USB camera family. It’s a 5MP, based on the 1/4″ OV5648 image sensor, UVC compliant, wide-angle USB 2.0 camera. Ultra HD resolution meets your request for higher quality video still pictures resolution.

No longer be anxious about installing the driver! The native UVC drivers of Windows, Linux, and Mac shall be compatible with this camera so that it does not require extra drivers to be installed.

Note: If the device that you connect does not detect the camera, please check the USB port or cable.

Arducam UVC Camera

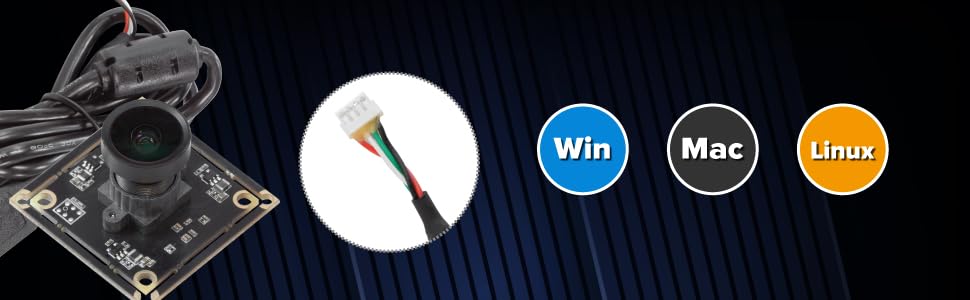

Plug&Play

Arducam UVC Camera

UB0233

Power

Power Supply: USB powered 5VWorking Current: MAX 300mA

Physical

Operating Temp.: -4°F~158°F (-20°C~+70°C).Dimension: 38mmx38mmHole Pitch: 28x28mmCable Length: 3.3ft (1M)

SPECS

Camera

Sensor: 1/4” OV5648Resolution: 5MP 2592(H) x 1944(V)Data Format: MJPG 15fps@2592*1944/2048*1536/1600*1200; 30fps@1920*1080/1280*960/1280*720/1024*768/800*600/640*360/640*480; YUY2 2fps@2592*1944/2048*1536; 5fps@1920*1080; 7.5fps@1600*1200/1280*960; 10fps@1280*720/1024*768; 20fps@800*600; 30fps@640*360/640*480

Lens

Field of View (FOV)：110°(D)x95°(H)x76°(V)Lens Mount: M12EFL: 2.1mmIR Sensitivity: Integral IR-cut filter, visible light only

Arducam UVC Camera

Functionality and Compatibility

Adjustable parameter: Brightness, Contrast, Saturation, Sharpness, White Balance, GainSystem Compatibility: Win7/8/10, Linux, Mac, and OS with UVC driver

Applications

Home video surveillance systemLive streamingVideo conferenceMonitoring 3D printerDashcam

Add to Cart

Customer Reviews

4.1 out of 5 stars 60

4.0 out of 5 stars 45

4.0 out of 5 stars 1

4.0 out of 5 stars 22

4.3 out of 5 stars 3

Price

$35.99$35.99 $47.99$47.99
— no data
$64.99$64.99 $99.99$99.99

Sensor
IMX179 IMX291 AR0230 IMX298 /

Resolution
8MP 3264(H)x 2448(V) 2MP 1920(H)x1080(V) 2MP 1920(H)x1080(V) 16MP 4656(H) x 3496(V) /

Field of View
D=74.6° D=100° H=95° H= 105° 20°-180°

Board Size
38x38mm 38x38mm 38x38mm 38x38mm /

Ultra HD Resolution: This camera adopts the 5MP OV5648 Color COMS sensor for sharp images and accurate color reproduction.
Wide Angle: Assembled with a 95-degree horizontal view angle M12 lens with IR-cut filter, which provides a much wider Field of View compared to other lenses.
Frame Rates: MJPG 15fps@2592*1944/2048*1536/1600*1200; 30fps@1920*1080/1280*960/1280*720/1024*768/800*600/640*360/640*480; YUY2 2fps@2592*1944/2048*1536; 5fps@1920*1080; 7.5fps@1600*1200/1280*960; 10fps@1280*720/1024*768; 20fps@800*600; 30fps@640*360/640*480
Plug&Play: UVC-compliant, just connect the camera to PC computer, laptop, Android device or Raspberry Pi with the USB cable without extra drivers to be installed.
Applications: Highly recommended for the video surveillance system, live streaming, videoconference, dashcam, and other vision applications.

Customers say

Customers find the camera’s quality excellent, with one mentioning it works well with Raspberry Pi. They appreciate its ease of setup, describing it as plug and play.
