LINOVISION Mini 2 Port POE Extender IEEE 802.3af/at POE Repeater Up to 1000ft Power Over Ethernet Over Cat5/6 Cable, POE Splitter to 2 POE Devices Like IP Cameras, IP Phone

From the brand

Linovision PoE Splitter

Linovision PoE Switch

Linovision PoE over Coax

【2-PORT POE SPLITTER】This 2-port POE extender is designed to supply POE power to two POE devices through one Cat5E/6 cable, and no power adapter is required. It is powered by 48V or 53V PoE Switch/POE NVR/PoE Injector/Mid-span. With this POE splitter, users can easily add extra POE device or non-POE device to existing cable without running a new network cable.

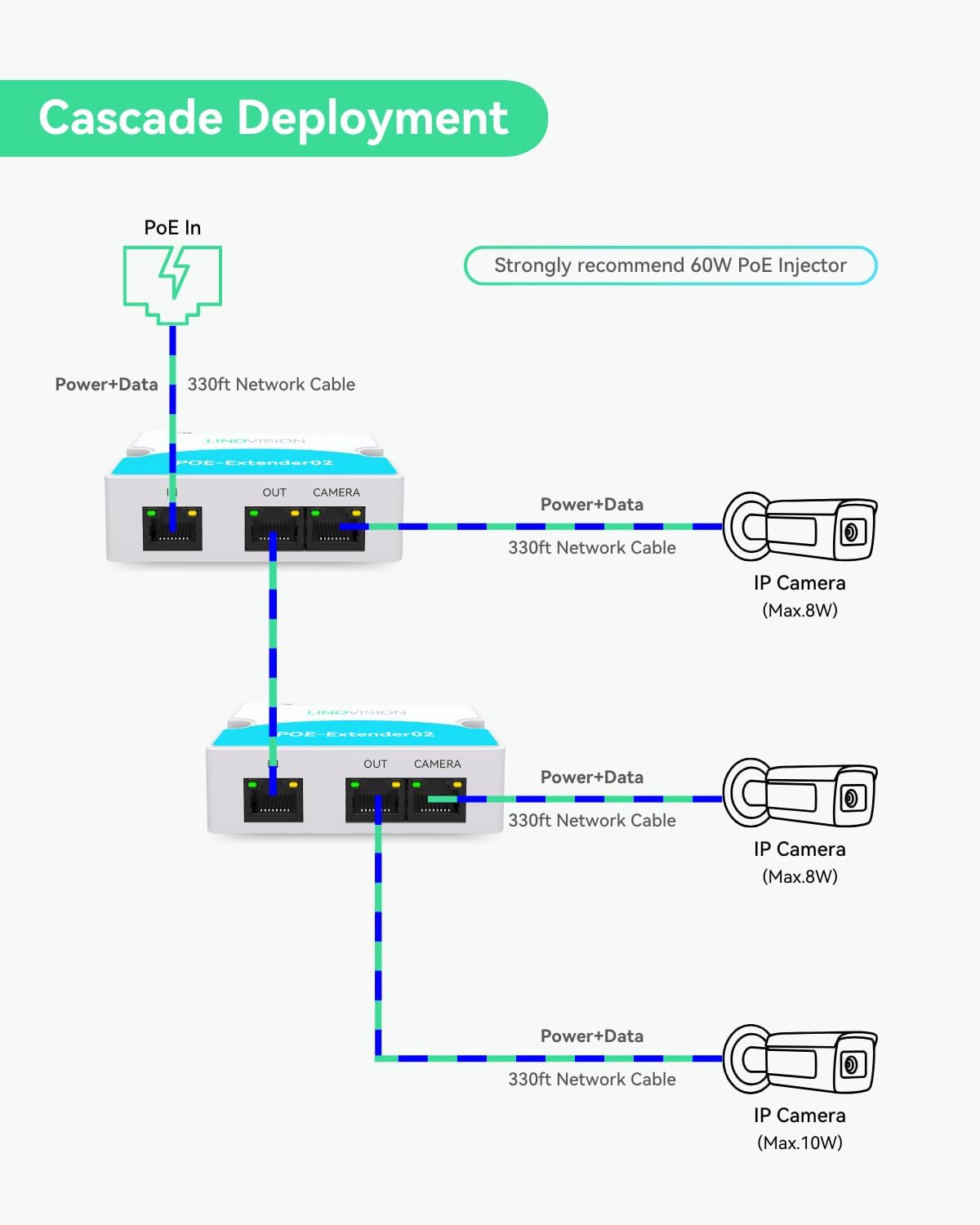

【UP TO 330FT POE + DATA EXTENTION】Extra 330ft POE+Data transmission will be extended with one Linovision POE Extender. And it supports two levels cascade deployment, therefore total 1,000ft POE + Data transmission is provided. (The 2nd POE Extender’s POE Input should be connected to the 1st POE Extender’s Out port, not Camera port)

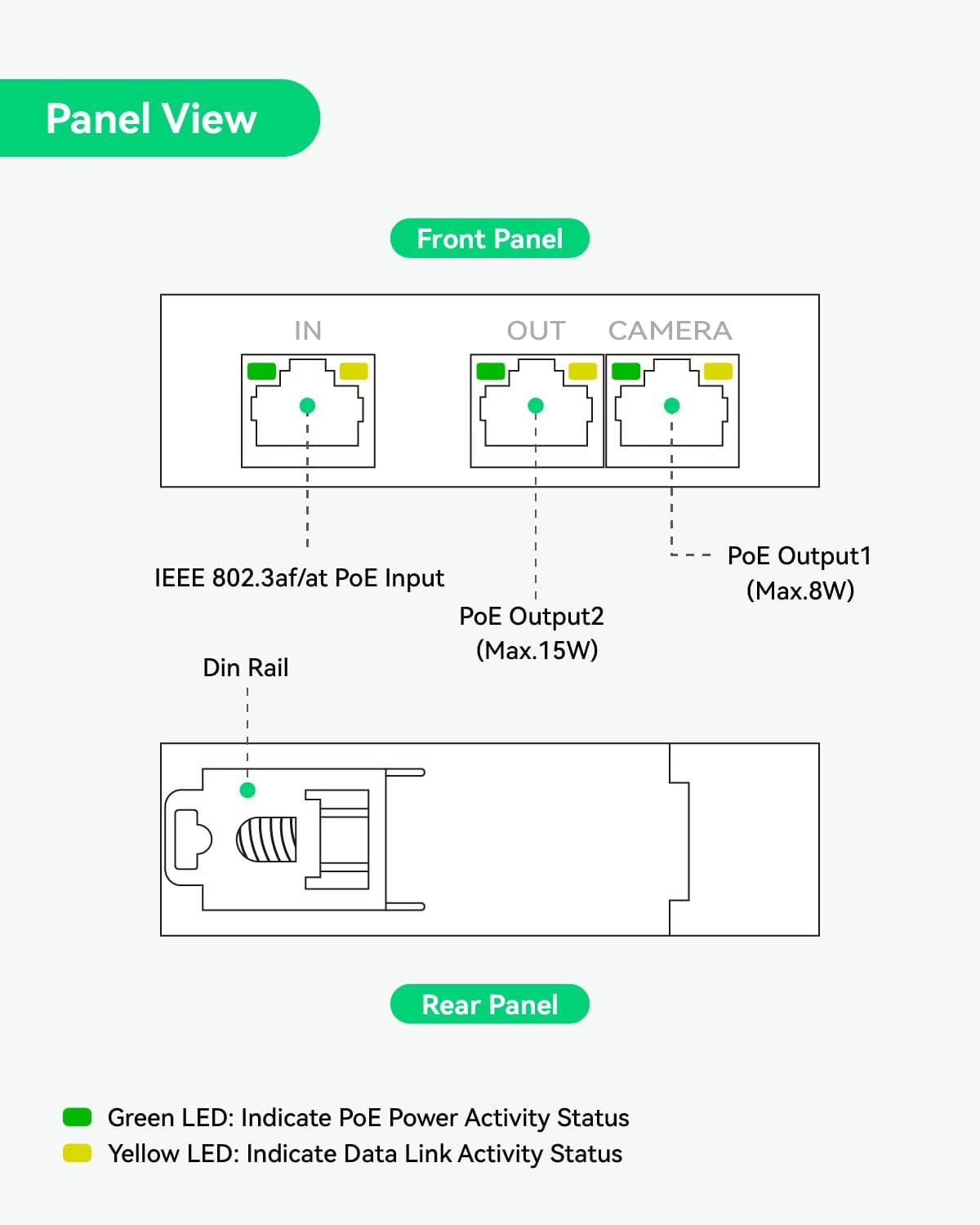

【COMPLIANT TO IEEE802.3AF/AT STANDARD】This POE Extender works with all standard IEEE802.3af/at POE Switches/POE injectors/POE NVRs. And the POE Outputs supply power to standard POE devices (don’t support 24V POE Devices) , like POE IP camera/IP phone/IP speaker. Noted: The CAMERA Port supports max 8W power consumption and the OUT Port supports max 15W. The max bandwidth is 100Mbps. As the distance increases, the power and the bandwidth will decrease.

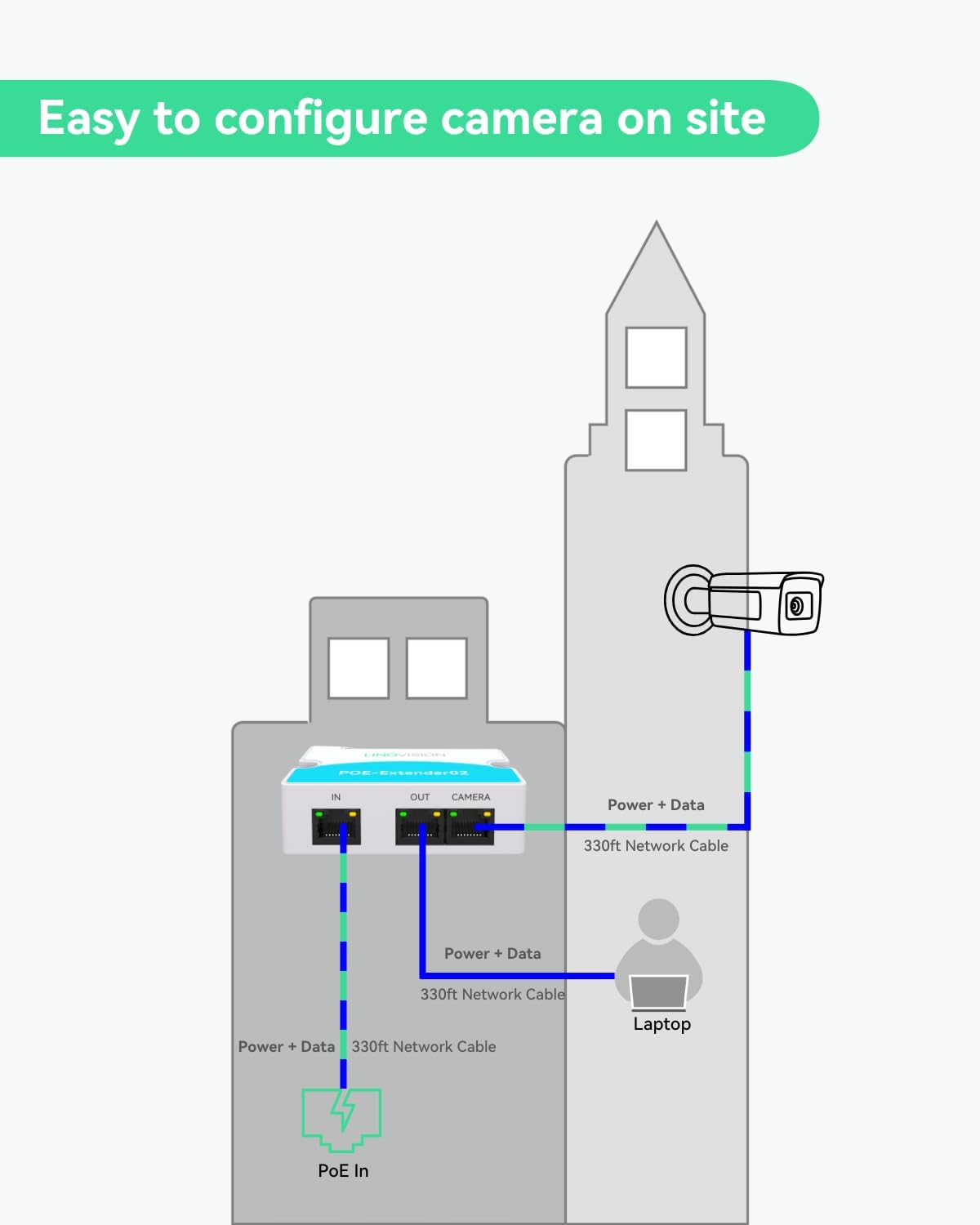

【EASY TO CONFIGURE IP CAMERA ON SITE】By interting this PoE-Extender02 to an existing PoE cable, installers can use laptop or CCTV Tester to easily adjust camera angle and configure IP
【PLUG-N-PLAY INSTALLATION】Plug-n-Play, no configuration or setup is required. With compact dimension ( 3.1”* 2” * 1”), enough to fit many junction boxes or outdoor waterproof enclosures.
【Versions Notes】The product currently has 2 versions, and the 2 versions are shipped randomly. Please rest assured that except for the different panels, the functions of the two versions are the same.
